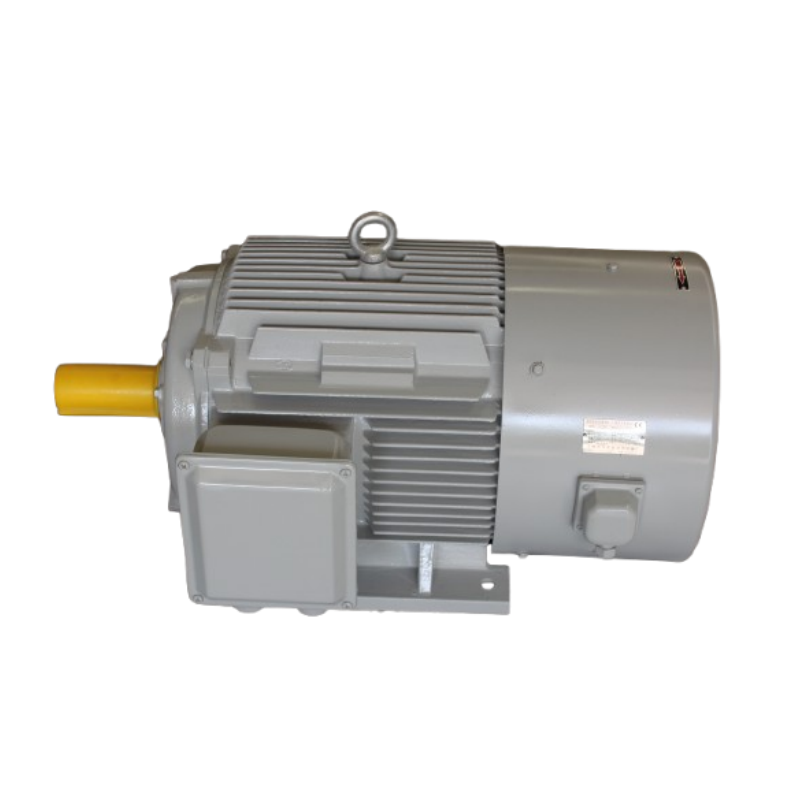

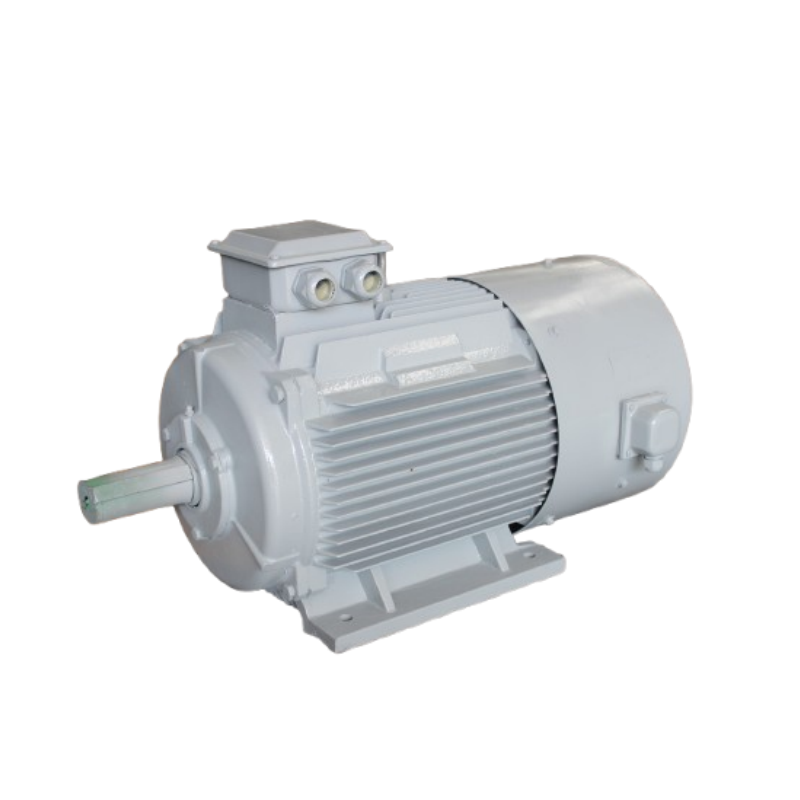

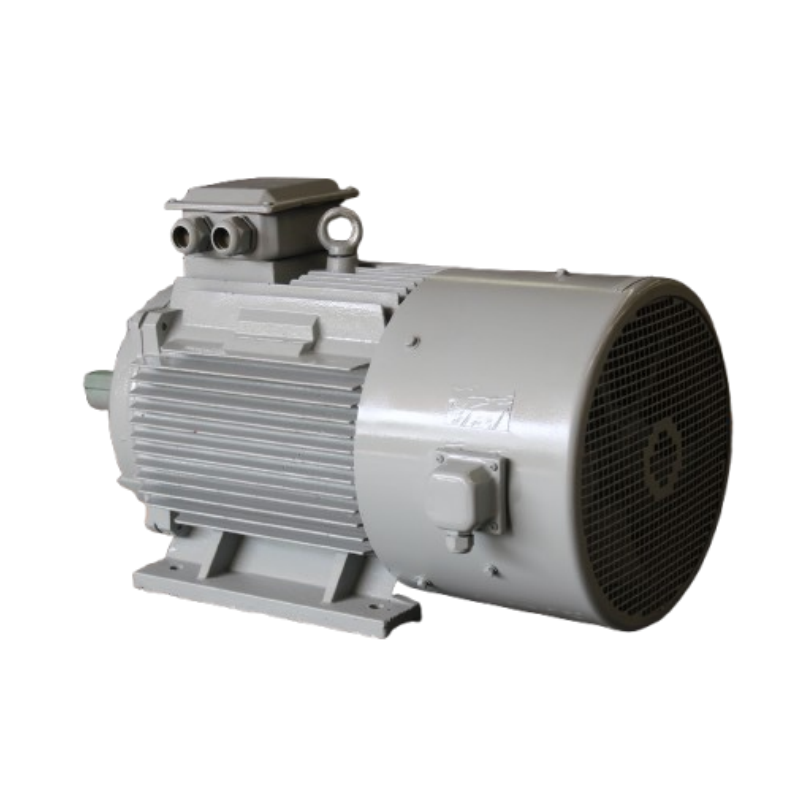

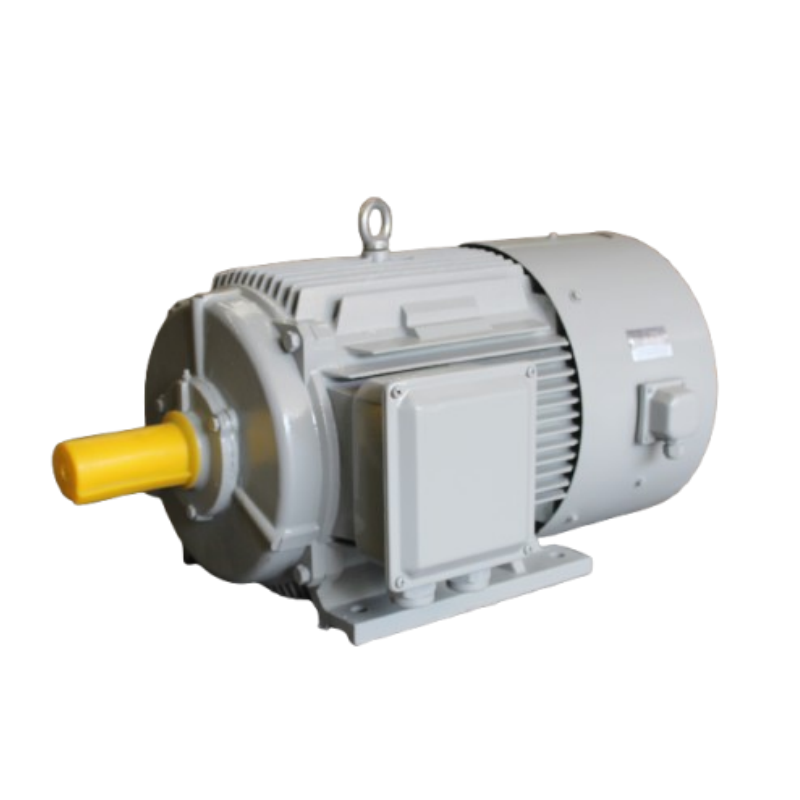

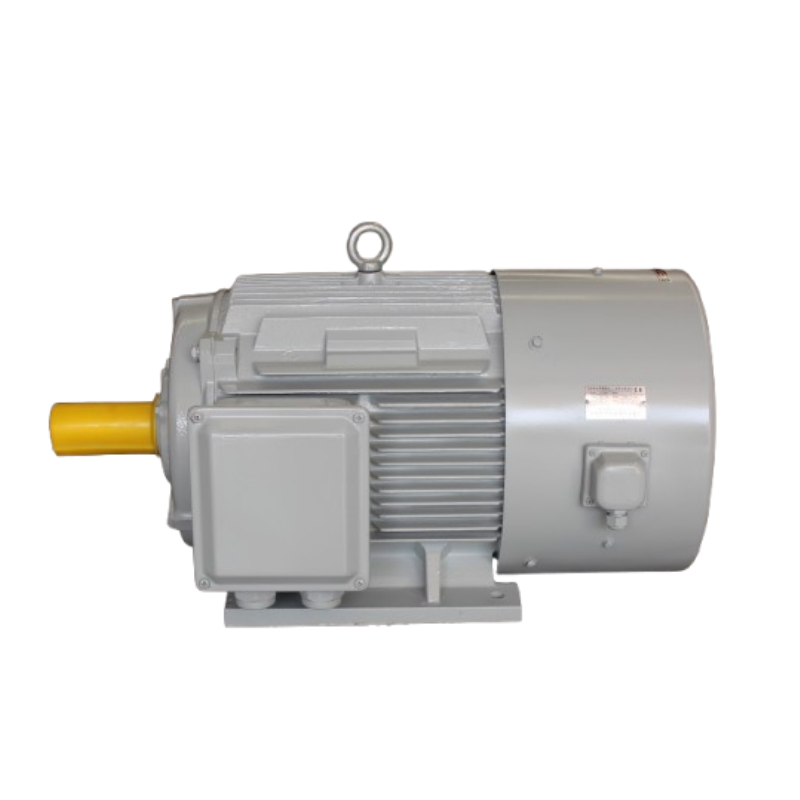

YP Series Variable Frequency Speed Regulation Three-Phase Asynchronous Motor

1. The meaning of the motor model: YP 355 M1-4 W

Y: Asynchronous motor

P: Frequency conversion speed regulation

355: Center height of machine base (335mm)

M: Base length (middle base)

1: No. 1 iron core length

4: Number of poles (4 poles)

W: Special environment code (outdoor type)

2. Basic structural parameters:

Structure and installation form: IMB3, IMB5, IMB6, IMB7, IMB8, IMB14, IMB34, IMB35, IMV1, IMV3, IMV5, IMV6, IMV15, IMV18, IMV36, etc.

The protection level of the main body shell: IP55

Motor cooling method: IC411/IC416

Motor insulation class: F class

3. Technical parameters

Rated voltage: 380V (also can be manufactured according to special voltage)

Rated frequency: 3-50Hz

Quota: continuous working system S1.
